Relocated Connector

Previous | Home | Next

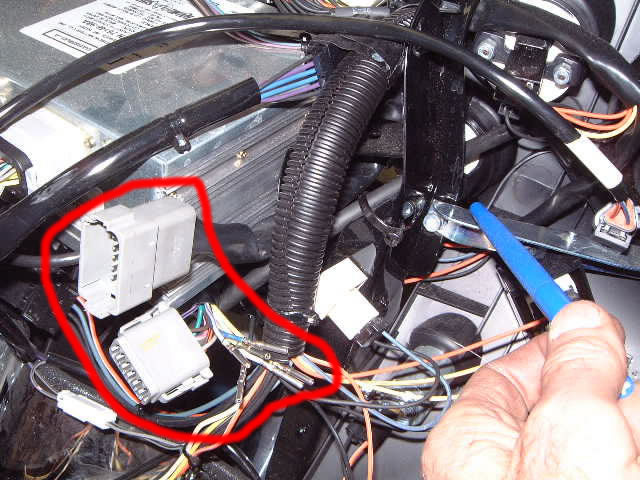

Here, you can see where the left-hand connector was originally mounted (I'm pointing to the old location with the pen). the new location is adjacent to the back of the radio, circled in red. Also note that about half the handlebar wiring connector pins have been installed into the mating connector below. I thought this would be a good time for a picture to show where the new connector location will be, adjacent to the radio or about 3" down from the stock position.
