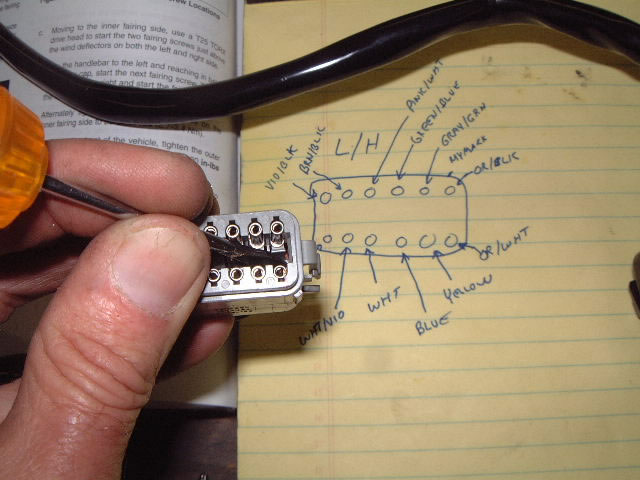

The connector pins are easily removed. Pop out the little orange retainer and (using s small screw driver) depress the plastic tang away from the pin and pull the wire out from the back side. Here, my screwdriver blade is under the tang on the lower/right-hand pin.

I made a simple drawing to ensure that the wires go back in the holes from which they came. I also marked one of the four corners to make sure the connector is oriented properly when inserting the pins back into their respective holes.
